A572 Grade 50 low alloy normalized steel plate are high strength fine-grain structural steel plate manufactured at normalized condition. And ASTM A572 Grade 50 is considered a "workhorse" grade and is widely used in many applications. Steel mills can also produce steel product types like channel and heavy beams with Grade 50.

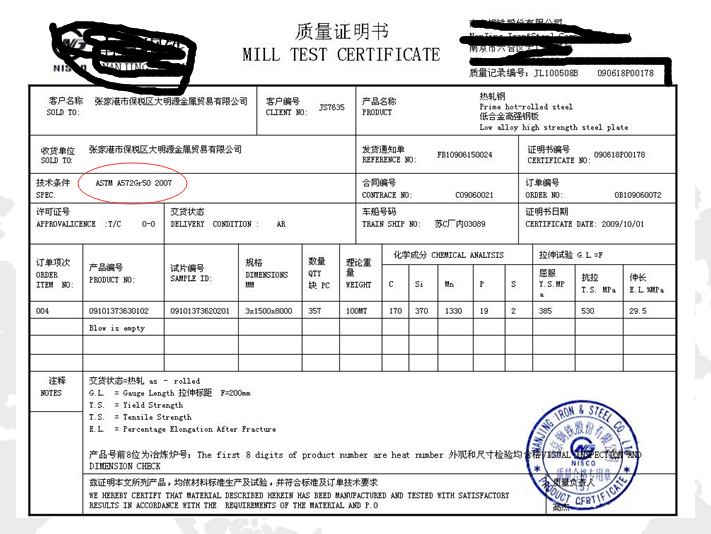

A572 Grade 50 low alloy normalized steel plate mill test certificate:
A572 Grade 50 low alloy normalized steel plate is widely used in structural applications, heavy construction equipment, building structures, heavy duty anchoring systems, truck frames, poles, liners, conveyors, boom sections, structural steel shapes, ect.
A572 Grade 50 low alloy normalized steel plate available sizes:
Thickness: 3/16" – 4"
Width: 48" – 120"
Length: 96" – 480"
Heat Treatment: generally used in the "as supplied" condition. Annealing, if required, can be done at 1700° F and slow furnace cooled.
Weldability: Easily welded by all commercial methods.
A572 Grade 50 low alloy normalized steel plate typical chemicals：
Grade |
C
|
Mn
|
Si
|
S
|
p
|
|
A572 Grade 50
|
0.23 max.%
|
1.35 max.%
|
0.05 max.%
|
0.04 max.%
|
0.40 max.%
|
A572 Grade 50 low alloy normalized steel plate typical mechanical:
Grade |
Yield strength Re, MPa [ksi]
|
Tensile strength Rm, MPa [ksi]
|
Minimum elongation
|
|
min. 200 mm [8 in.], %
|
min. 50 mm [2 in.], %
|
|
A572 Grade 50
|
≥345 [50
|
≥450 [65]
|
18
|
21
|
A572 Grade 50 low alloy normalized steel plate prime advantage of services:
MTC: available
Stock: available
Payment Item: T/T or L/C at sight
Delivery time: promptly ( Stock) or 10-40 days (Production)
steel marking: material specification, Heat number, Dimension, manufacturer name or brand, and as your demand.
Place of origin: China(mainland)
Load port: Shanghai Port; Tianjin Port.
Corresponding steel grade to A572 Grade 50:
DIN17100 ST52-3
EN 10025-2 S355JR
EN10025:1990 FE 510 B
JIS SS490/SM490A
UNI7070 FE 510 B
NFA 35-501 E36-2
BS1449 50B

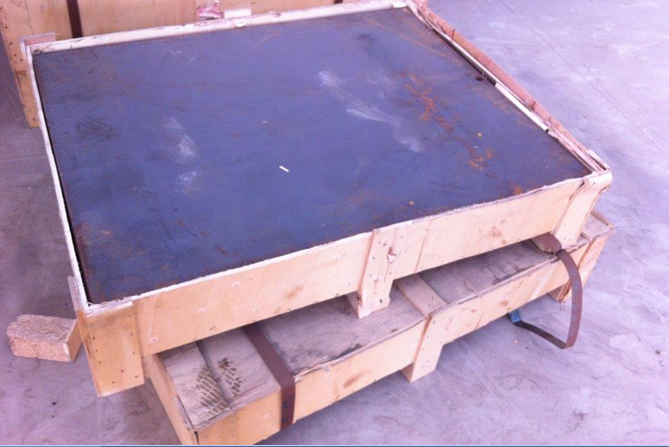

The A572Gr50 package we made for our customer(The size of wooden package is 1500*4000 which takes about 60 usd per piece)：
Continuous quality control from incoming goods to storage to outgoing goods is very strict in BEBON. Mill test certificate, various test report, specialty metals, complete processing services, timely delivery and excellent export service are offered for A572 Grade 50 low alloy normalized steel plate. Only in this way can we provide high quality and outstanding service to each customers, so feel free to contact our A572 Grade 50 low alloy normalized steel plate sales team now.
