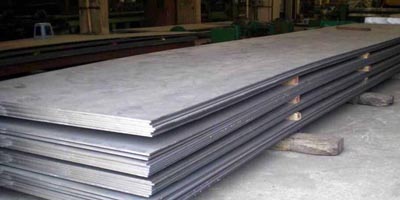

EN 10025-2 S235JR Carbon Structural Steel Plate are mainly used to produce structural parts of the bolted and welded steel in dustrial area.With its low carbon equivalent, it possesses good cold-forming properties. The plate is produced by fully killed steel process and supplied in normalized or controlled rolling condition.Now BBN Steel can offer S235JR carbon steel plate with the maximum thickness of 600mm,and Normalized heat treatment or Controlled rolled is ok for delivery these heavy steel plates.
EN 10025-2 S235JR Carbon Structural Steel Plate Specification:
Thickness:1.2--600mm
Width:1220--4200mm
Length:5000--18000mm
S235JR Steel Plate Chemical composition:
| C |
Mn |
P |
S |
N |
Cu |
CEV |
| max 0.2 |
max 1.4 |
max 0.04 |
max 0.04 |
max 0.012 |
max 0.55 |
max 0.38 |
S235JR Steel Plate Mechanical properties:
| Nominal thickness (mm) |
to 16 |
16 - 40 |
40 - 63 |
63 - 80 |
80 - 100 |
100 - 125 |
| ReH - Minimum yield strength (MPa) |
235 |
225 |
215 |
215 |
215 |
195 |
EN 10025-2 S235JR Carbon Structural Steel Plate application in freight cars,transmission towers,dump trucks,cranes,trailers,bull dozers,excavators,forestry machines,railway wagons,penstocks,highway bridges,building structures,oil and gas platforms,offshore structures,shipbuilding,power plant,palm oil equipments and machineries, fans, pumps, lifting equipments and port.
S235JR Steel Plate has been widely used by the world's industrial fabricators.BBN international is specialized in supplying S235JR Steel Plate Chinese supplier with a long exporting history.So any questions or any order are welcomed to be written down on the following message board,we will email you the quotation within 24 hours as soon as we get you message.
