A572 Grade 60 low alloy carbon structural steel plate is quality high strength columbium-vanadium low alloy steel plate. And A572 Grade 60 low alloy carbon structural steel plate is generally used in the "as-supplied" condition.
However, A572 Grade 60 low alloy carbon structural steel plate is possible to obtain higher level of strength by specifying Quenched and Tempered steel plate as per reference specification. A572 Grade 60 low alloy carbon structural steel plate contains more alloying elements than plain carbon steel and thus is somewhat more difficult to form.

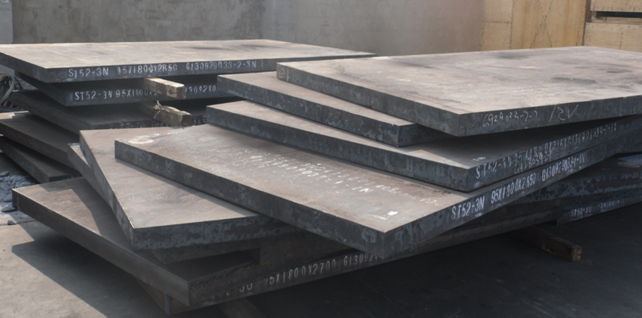

A572 Grade 60 low alloy carbon structural steel plate we supplied for our guest:
A572 Grade 60 low alloy carbon structural steel plate available sizes:
Thickness: 3/16" – 1 1/4"
Width: 48" – 120"
Length: 96" – 480"
A572 Grade 60 low alloy carbon structural steel plate typical chemicals：
| Grade |
C
|
Mn
|
Si
|
S
|
p
|
|
A572 Grade 60
|
0.26 max.%
|
1.35 max.%
|
0.05 max.%
|
0.04 max.%
|
0.40 max.%
|
A572 Grade 60 low alloy carbon structural steel plate typical mechanical:
Grade |
Yield strength Re, MPa [ksi]
|
Tensile strength Rm, MPa [ksi]
|
Minimum elongation
|
|
min. 200 mm [8 in.], %
|
min. 50 mm [2 in.], %
|
|
A572 Grade 60
|
≥415 [60]
|
≥520 [75]
|
16
|
18
|
A572 Grade 60 low alloy carbon structural steel plate prime advantage of services:
Place of origin: China(mainland)
Load port: Shanghai Port; Tianjin Port.
Trade terms: FOB,CIF,C&F
Payment term: 30% by TT in advance
Delivery time: about 20 days, or negotiable.
A572 Grade 60 is similar to AISI 1330. A572 Grade 60 low alloy carbon structural steel plate is more difficult to cold work than ordinary plain carbon steel. However it can be bent or shaped successfully but requires more force than for plain carbon steel. Moreover, A572 Grade 60 low alloy carbon structural steel plate can be supplied not only in plate but also in shapes and bar forms. Feel free to contact us if interest.
